RE1'S COMPANION



BRAINFPV mPB V2

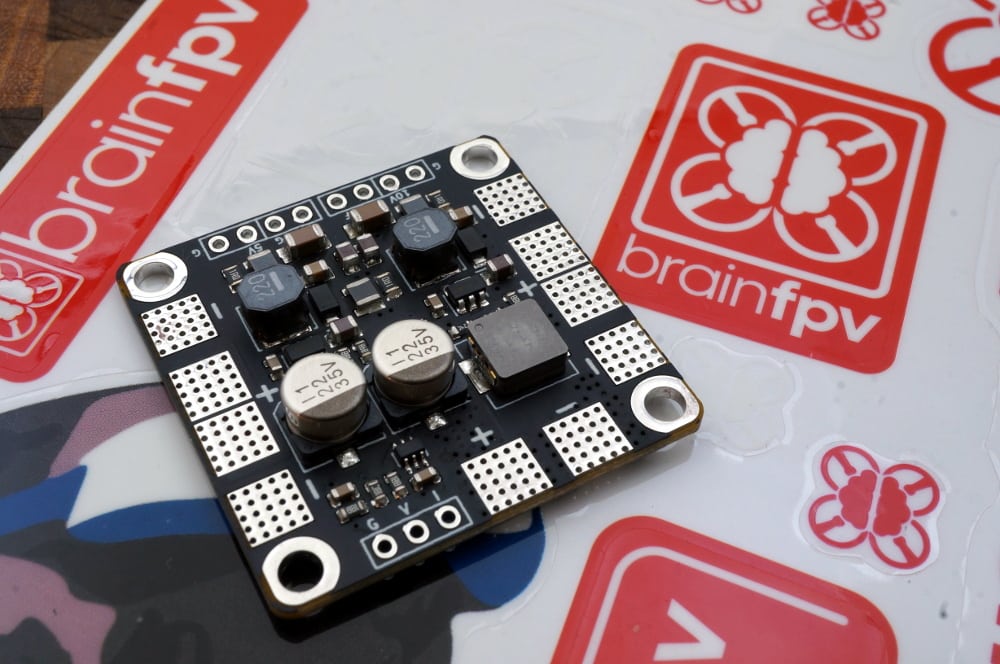

The RE1 can be directly plugged into the newly updated Mini Power Board Version 2 (RE1-mPB V2). This power distribution board enables a simple, clean build requiring no wiring between the two. mPB uses an LC filter to reduce motor noise and protect your FPV components from voltage spikes, resulting in a noise-free FPV experience. Highly accurate voltage/current sensing up to 6S/130A lets you always know how much battery you have left.

MSRP: $25     BUY

Status: In stock. Orders placed before 2PM EST typically ship the same day.



NEW AND IMPROVED

mPB V2 is an improved version of the original mPB and offers several improvements, like 5mm stacking height and 6S compatibility.

















MORE POWER


FEEL THE VOLTAGE

Fly with up to 6S.

SLENDERIZED


BETTER DESIGN

5mm stacking height (instead of 8mm).



DON'T WORRY ABOUT RUNNING LOW



BATTERY MONITOR


Accurate voltage and current measurement enable you to keep tabs on your battery usage.



osd

TECHNICAL SPECIFICATIONS

mPB V2

Power Outputs: 5V (1A), 10V (1A), filtered output (1A). 10V output can be switched to be a second 5V (1A) output by bridging a jumper.

Power Input: 10V - 26V (3S - 6S LiPo battery)

Voltage Measurement: 91mV/V output (1:11 divider ratio)

Current Measurement: 25mV/A output

Filtering: LC filter to reduce motor noise and protect components from voltage spikes

Copper thickness: 4 oz (140 μm); 4-layer PCB

Maximum total Current to ESCs: 80A constant, 130A burst (10 seconds).

Stacking Height: 5mm

Original mPB

Power Outputs: 5V (1.25A), 12V (150mA), filtered output (750mA).

Power Input: 6.5V - 20V (2S - 4S LiPo battery)

Voltage Measurement: 151mV/V output

Current Measurement: 25mV/A output

Filtering: LC filter to reduce motor noise and protect components from voltage spikes

Copper thickness: 4 oz (140 μm); 2-layer PCB

Maximum total Current to ESCs: 70A constant, 120A burst (10 seconds).

Stacking Height: 8mm
